Canopy Store - SMB Pro 50 Range
Weight (Kg)
46/60
49/63
76
63/79
86/103
137
90/120
Folded Size (cm)
155 x 34 x 34
155 x 44 x 34
208 x 35 x 35
155 x 45 x 35
166 x 60 x 35
208 x 45 x 45
155 x 60 x 60
Size (Metres)
2.0 x 3.0
3.0 x 3.0
4.0 x 4.0
4.5 x 3.0
6.0 x 3.0
6.0 x 4.0
8.0 x 4.0
6M Hexagon
Frame Specification:
This frame has a 5 position adjustable height and is manufactured with hexagonal
profile 3 mm gauge aluminium. It has heavy duty, cast alloy joints with quick-
release pull pin fixings, multi-point roof structure support and welded feet. It has
adjustable head clearance of between 190cm to 220cm.
Canopy Specification:
The canopy is manufactured from 550g denier polyester which is flame retardent
to BS 7837:1996. It has internal PVC coating for maximum heat and UV protection.
All seams are hot air taped and triple stitched to make them 100% weatherproof.
Side Curtain Specification:
Side Curtains are 350g polyester, flame resistant to BS 7837:1996, with internal
PVC coating. They feature a velcro Quick-Fit system, zipped corners and integral
mudflaps. There is a set of 2 x 2M length clear panoramic window panels made of
high quality super elastic material (each window is fitted with an internal blind), 1
x 3M solid panel and 1 extra wide double zipper doorway.
SMB501 - 2 M x 3 M
Choose
the
dimensions
that
you
require
then
click
on
the
Canopy
Code
shown
next
to
your
preferred
dimensions
to see full details.
COLOUR OPTIONS
Our canopies are available in the following colours. Each colour has a code which, when added to the canopy code will form the product
order number. For example, for a 2.0M x 3.0M SMB Pro 50 frame with green and white canopy, the product order code will be SMBP501-10.
01 - Black
02 - White
03 - Red
04 - Green
05 - Royal Blue
06 - Navy Blue
07 - Royal Blue & White
08 - Navy Blue & White
09 - Black & White
10 - Green & White
11 - Red & White
12 - Black & Silver
13 - Yellow & Silver
14 - Sky Blue & Yellow
See Below for colour options.
Frame Specification:
This frame has a 5 position adjustable height and is manufactured with hexagonal
profile 3 mm gauge aluminium. It has heavy duty, cast alloy joints with quick-
release pull pin fixings, multi-point roof structure support and welded feet. It has
adjustable head clearance of between 190cm to 220cm.
Canopy Specification:
The canopy is manufactured from 550g denier polyester which is flame retardent
to BS 7837:1996. It has internal PVC coating for maximum heat and UV protection.
All seams are hot air taped and triple stitched to make them 100% weatherproof.
Side Curtain Specification:
Side Curtains are 350g polyester, flame resistant to BS 7837:1996, with internal
PVC coating. They feature a velcro Quick-Fit system, zipped corners and integral
mudflaps. There is a set of 2 x 2M length clear panoramic window panels made of
high quality super elastic material (each window is fitted with an internal blind), 1
x 3M solid panel and 1 extra wide double zipper doorway.
SMB501 - 2 M x 3 M
See Below for colour options.
Frame Specification:
This frame has a 5 position adjustable height and is manufactured with hexagonal profile
3 mm gauge aluminium. It has heavy duty, cast alloy joints with quick-release pull pin
fixings, multi-point roof structure support and welded feet. It has adjustable head
clearance of between 190cm to 220cm.
Canopy Specification:
The canopy is manufactured from 550g denier polyester which is flame retardent to BS
7837:1996. It has internal PVC coating for maximum heat and UV protection. All seams
are hot air taped and triple stitched to make them 100% weatherproof.
Side Curtain Specification:
Side Curtains are 350g polyester, flame resistant to BS 7837:1996, with internal PVC
coating. They feature a velcro Quick-Fit system, zipped corners and integral mudflaps.
There is a set of 2 x 3M length clear panoramic window panels made of high quality super
elastic material (each window is fitted with an internal blind), 1 x 3M solid panel and 1
extra wide double zipper doorway.
SMB502 - 3.0 M x 3.0 M
SMB503 - 4.0 M x 4.0 M
See Below for colour options.
Frame Specification:
This frame has a 5 position adjustable height and is manufactured with hexagonal profile
3 mm gauge aluminium. It has heavy duty, cast alloy joints with quick-release pull pin
fixings, multi-point roof structure support and welded feet. It has adjustable head
clearance of between 190cm to 220cm.
Canopy Specification:
The canopy is manufactured from 550g denier polyester which is flame retardent to BS
7837:1996. It has internal PVC coating for maximum heat and UV protection. All seams
are hot air taped and triple stitched to make them 100% weatherproof.
Side Curtain Specification:
Side Curtains are 350g polyester, flame resistant to BS 7837:1996, with internal PVC
coating. They feature a velcro Quick-Fit system, zipped corners and integral mudflaps.
There is a set of 2 x 3M length clear panoramic window panels made of high quality super
elastic material (each window is fitted with an internal blind), 1 x 3M solid panel and 1
extra wide double zipper doorway.
SMB502 - 3.0 M x 3.0 M
SMB503 - 4.0 M x 4.0 M
See Below for colour options.
SMB504 - 4.5 M x 3 M
Frame Specification:
This frame has a 5 position adjustable height and is manufactured with hexagonal profile 3
mm gauge aluminium. It has heavy duty, cast alloy joints with quick-release pull pin
fixings, multi-point roof structure support and welded feet. It has adjustable head
clearance of between 190cm to 220cm.
Canopy Specification:
The canopy is manufactured from 550g denier polyester which is flame retardent to BS
7837:1996. It has internal PVC coating for maximum heat and UV protection. All seams are
hot air taped and triple stitched to make them 100% weatherproof.
Side Curtain Specification:
Side Curtains are 350g polyester, flame resistant to BS 7837:1996, with internal PVC
coating. They feature a velcro Quick-Fit system, zipped corners and integral mudflaps.
There is a set of 2 x 3M length clear panoramic window panels made of high quality super
elastic material (each window is fitted with an internal blind), 1 x 4.5M solid panel and 1
4.5M wide double zipper doorway.
See Below for colour options.

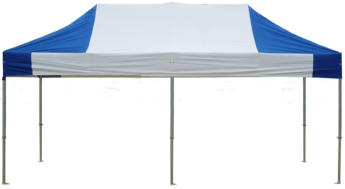

SMB505 - 6 M x 3 M
SMB506 - 6 M x 4 M
SMB507 - 8 M x 4 M
Frame Specification:
This frame has a 5 position adjustable height and is manufactured with hexagonal
profile 3 mm gauge aluminium. It has heavy duty, cast alloy joints with quick-release
pull pin fixings, multi-point roof structure support and welded feet. It has adjustable
head clearance of between 190cm to 220cm.
Canopy Specification:
The canopy is manufactured from 550g denier polyester which is flame retardent to BS
7837:1996. It has internal PVC coating for maximum heat and UV protection. All seams
are hot air taped and triple stitched to make them 100% weatherproof.
Side Curtain Specification:
Side Curtains are 350g polyester, flame resistant to BS 7837:1996, with internal PVC
coating. They feature a velcro Quick-Fit system, zipped corners and integral mudflaps.
There is a set of 2 x 3M length clear panoramic window panels made of high quality
super elastic material (each window is fitted with an internal blind), 1 x 6M solid panel
and 2 x 3M wide double zipper doorways (dimensions vary proportionately for SMB506
and SMB507)
See Below for colour options.
SMB505 - 6 M x 3 M
SMB506 - 6 M x 4 M
SMB507 - 8 M x 4 M
Frame Specification:
This frame has a 5 position adjustable height and is manufactured with hexagonal
profile 3 mm gauge aluminium. It has heavy duty, cast alloy joints with quick-release
pull pin fixings, multi-point roof structure support and welded feet. It has adjustable
head clearance of between 190cm to 220cm.
Canopy Specification:
The canopy is manufactured from 550g denier polyester which is flame retardent to BS
7837:1996. It has internal PVC coating for maximum heat and UV protection. All seams
are hot air taped and triple stitched to make them 100% weatherproof.
Side Curtain Specification:
Side Curtains are 350g polyester, flame resistant to BS 7837:1996, with internal PVC
coating. They feature a velcro Quick-Fit system, zipped corners and integral mudflaps.
There is a set of 2 x 3M length clear panoramic window panels made of high quality
super elastic material (each window is fitted with an internal blind), 1 x 6M solid panel
and 2 x 3M wide double zipper doorways (dimensions vary proportionately for SMB506
and SMB507)
See Below for colour options.
SMB505 - 6 M x 3 M
SMB506 - 6 M x 4 M
SMB507 - 8 M x 4 M
Frame Specification:
This frame has a 5 position adjustable height and is manufactured with hexagonal
profile 3 mm gauge aluminium. It has heavy duty, cast alloy joints with quick-release
pull pin fixings, multi-point roof structure support and welded feet. It has adjustable
head clearance of between 190cm to 220cm.
Canopy Specification:
The canopy is manufactured from 550g denier polyester which is flame retardent to BS
7837:1996. It has internal PVC coating for maximum heat and UV protection. All seams
are hot air taped and triple stitched to make them 100% weatherproof.
Side Curtain Specification:
Side Curtains are 350g polyester, flame resistant to BS 7837:1996, with internal PVC
coating. They feature a velcro Quick-Fit system, zipped corners and integral mudflaps.
There is a set of 2 x 3M length clear panoramic window panels made of high quality
super elastic material (each window is fitted with an internal blind), 1 x 6M solid panel
and 2 x 3M wide double zipper doorways (dimensions vary proportionately for SMB506
and SMB507)
See Below for colour options.

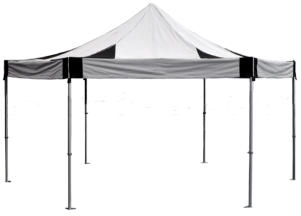

SMB508 - 6M Hexagon
Frame Specification:
This frame has a 5 position adjustable height and is manufactured with hexagonal
profile 3 mm gauge aluminium. It has heavy duty, cast alloy joints with quick-release
pull pin fixings, multi-point roof structure support and welded feet. It has adjustable
head clearance of between 190cm to 220cm.
Canopy Specification:
The canopy is manufactured from 550g denier polyester which is flame retardent to
BS 7837:1996. It has internal PVC coating for maximum heat and UV protection. All
seams are hot air taped and triple stitched to make them 100% weatherproof.
Side Curtain Specification:
Side Curtains are 350g polyester, flame resistant to BS 7837:1996, with internal PVC
coating. They feature a velcro Quick-Fit system, zipped corners and integral
mudflaps. There is a set of 2 x 3M length clear panoramic window panels made of high
quality super elastic material (each window is fitted with an internal blind), 1 x 6M
solid panel and 2 x 3M wide double zipper doorways.
See Below for colour options.
